primary wire range is .015" to .080" (.40 - 2.0mm)

larger and smaller wires will successfully dereel depending on payoff speed and wire type

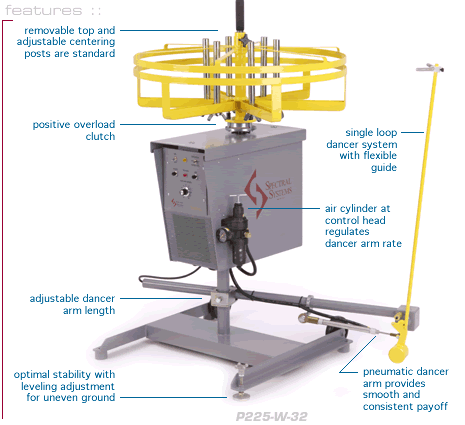

standard pneumatic dancer arm makes wire tension adjustment easy

optional W/S basket capable of handling both bundles and spools

optional high speed version [HRPM]

high efficiency in-line gearbox

Warranty :: Two years






CAPACITY
pounds

RANGE 1
inches

RPM 2

BASKET DIM
inches

MIN ID
inches

PAYOFF HT
inches

MOTOR
horsepower

SHIP WT
pounds



P225
P225-HP
P225-W/S HRPM

225
225
225

.015 - .080
.015 - .080
.015 - .080

0 - 90
0 - 80
0 - 175

32 x 5
32 x 5
32 x 5

5.0
12.5
12.5

37 - 49
37 - 49
37 - 49

1/8 DC
1/4 DC
1/4 DC

450
460
460
    1 Additional sizes of wire and shapes can be handled with special dance arms and guides
2 Other RPM ranges available
